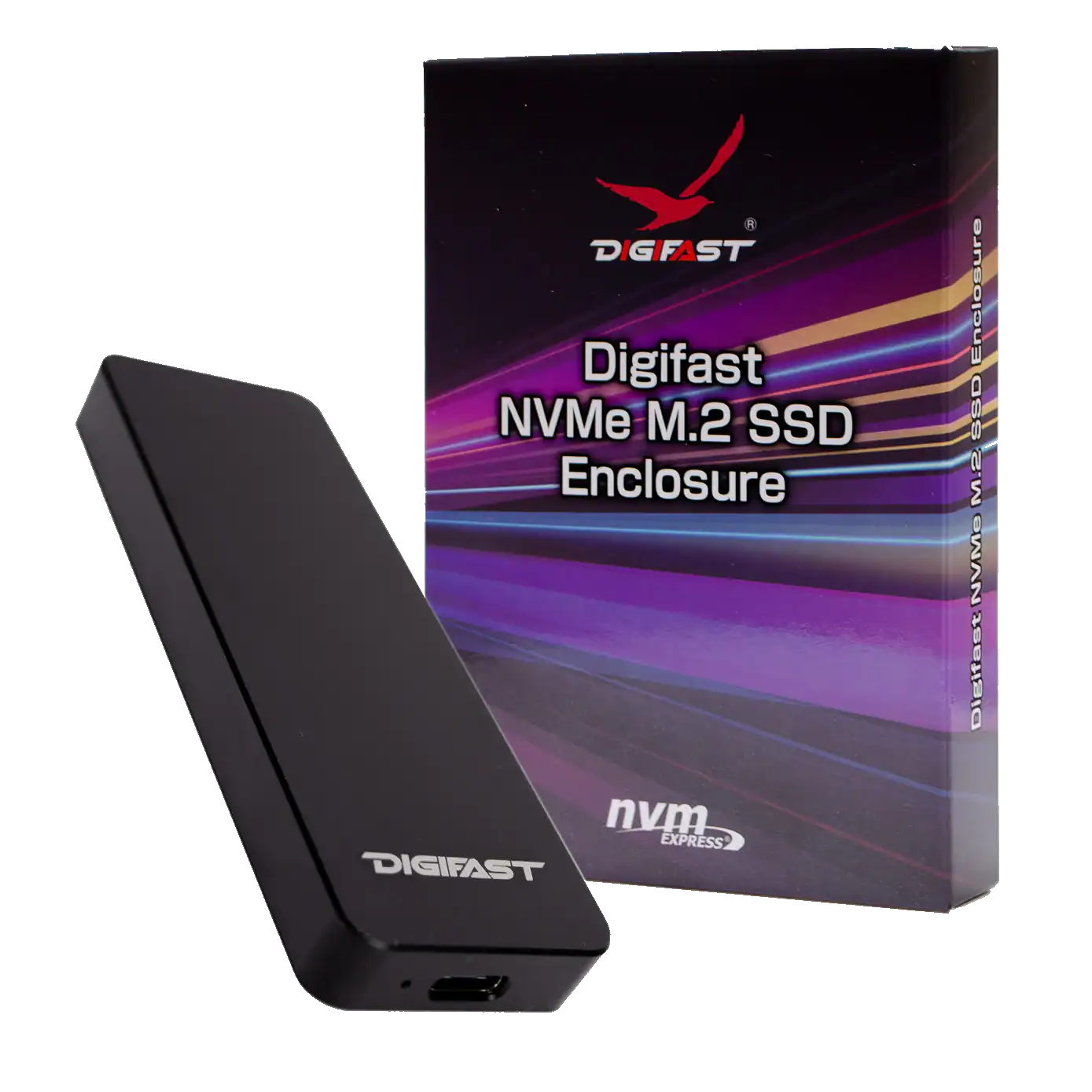

Digifast M.2 NVMe SSD Enclosure, USB3.1 GEN2 Type-C

Feature

Doubles as a heatsink – The CNC-milled enclosure was designed to ensure the controller makes contact with the aluminum. This drives heat away and keeps the drive running cool.

All-inclusive – The enclosure comes with everything needed to transform the user’s M.2 into an external SSD. No additional tools are required.

Travel size form factor allow you to use this alongside your laptop

All aluminum construction boasts premium built quality that ensure your M.2 SSD safely protected within. Digifast M.2 Enclosure allow you to have the confident to bring this with you anywhere!

M.2 is FAST. But with great speed comes great heat. This enclosure is made from aluminum making the entire body act as a heat sink, efficiently dissipating the heat of the NVMe M.2 SSD.

High Precision CNC Processing

The internals are also CNC machined with high precision so that the NVMe M.2 SSD and the base chip contact the aluminum perfectly, without the need for thermal pads.

Designed Exclusively for NVMe M.2 SSD

Supports the non-volatile memory express (NVMe) SSD, a PCI Express storage standard The connector standard adopts M.2. Compatible with all sizes of NVMe M.2 SSD. (Type 2280/2260/2242)

Does not support M. 2 SSD SATA protocol. Does not support M.2 SSD of AHCI standard.

USB 3.1 (Gen 2) Type-C Interface

The docking bay utilizes the USB 3.1 (Gen2), Type-C interface which supports high-speed transfer rates of up to 10 Gbps.

A USB3.1 Type-C to Type-A cable is included with this product. When connecting to a PC with Type-C, prepare a separate USB Type-C to Type-C cable or Type-A to Type-C adapter.

Benchmark software used: ATTO Disk Benchmark
SSD used: SAMSUNG M.2 NVME SSD 960 EVO 250G
Measurement result with USB3.1 Gen2 compatible USB port

Interface	USB 3.1 GEN 2 Type C
Color	Black
Dimensions	102mm x 35mm x 11mm
OS Support	Windows® 10 Windows® 10 64-bit Windows® 8.1 Windows® 8 Mac OS X 10.6 or Above
Speed	10 Gbps
SSD Compatibility	M.2 M Key PCIe (NVMe) SSD with 2280/2260/2242

**For more detail on the specs sheet please contact info@digifast-usa.com

Q1. What size M.2 does this support?

The Digifast enclosure supports NVMe M.2 of sizes 2242, 2260, and 2280. These sizes refer to the width and height in mm, ie 22mm x 42mm.

Q2. Does this device require any tools?

All tools required to use the enclosure are included with the device (except for the drive itself).

Q3. Will this device work with any operating system?

The device works with Windows 7 or later and MacOS 10.10.5 (Yosemite) or later. Most Linux distributions will work as well.

Q4. If I remove my SSD from a working PC, will I be able to read the files using this device?

Yes, so long as the drive you are removing is NVMe (as opposed to SATA), this will work without issues.

Q5. How fast will my SSD run using this enclosure?

The enclosure uses USB 3.2 Gen 2 which has a maximum transfer rate of 10 Gbps. This translates to at most 1000 MB/sec read and write.

Q6. What chip does the enclosure use?

It uses the JMicron JMS583 controller.

Q7. How long is the USB cable included?

The cable is a type-C to type-A cable and measures 20.5 cm
